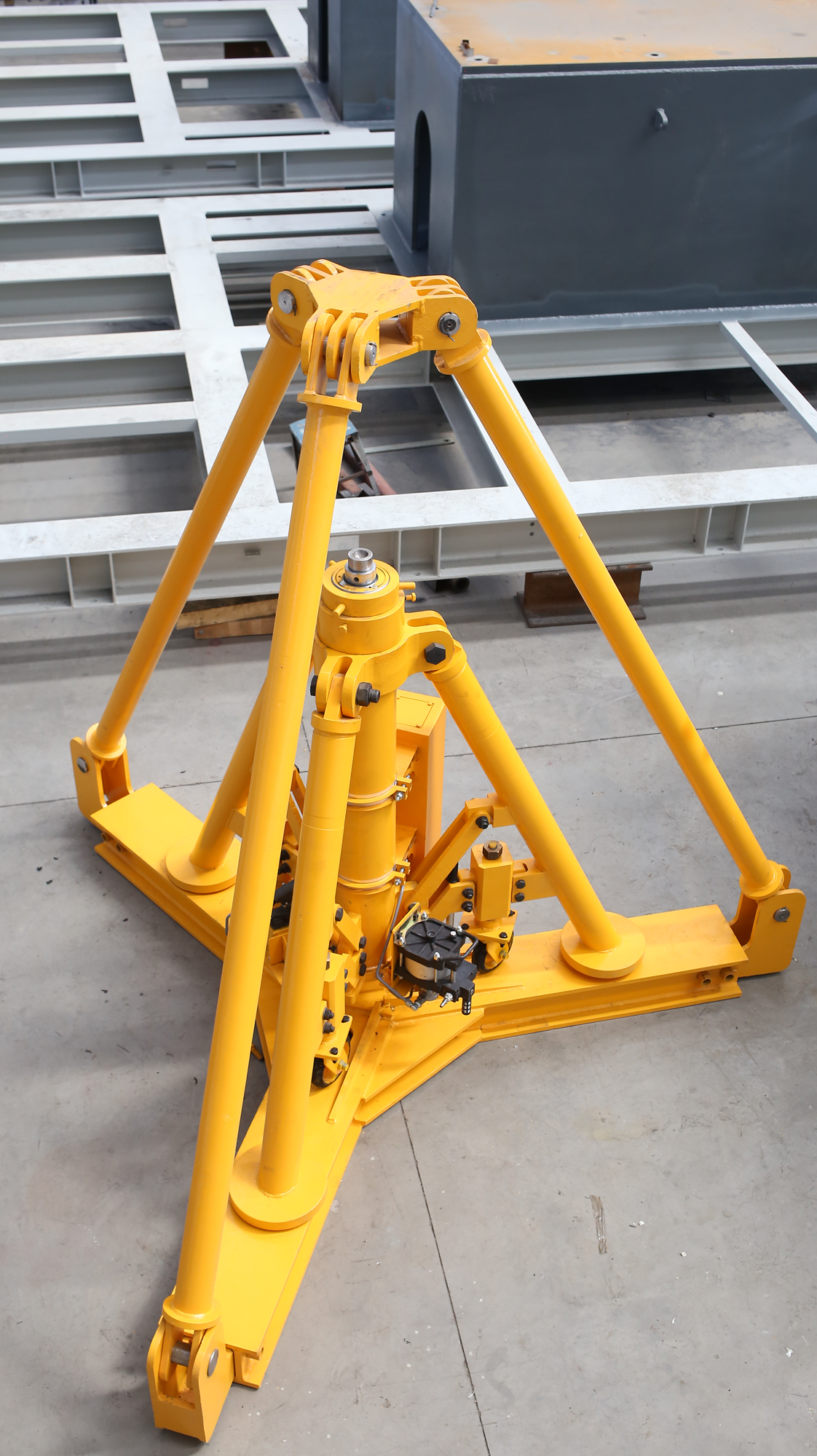

PAATCO Tripod-Jack Test Stand facilitate highly cost-effective and efficient tool for Test and calibration of your aircraft tripod jacks. To perform the load test, the jack is placed on the stand and fully extended. Then, the gage pressure will gradually increase. The pressure of 250 bar is equivalent to 60 ton on load the jack.

Tester jack consists of three arms at the bottom. The lower discs of the legs are placed in the jack on the tester in such a way that each wheel is between two guides.

In this mode, due to the fact that the jack is not under load, the wheels are on the arms of the tester and the three discs at the bottom of the legs are not under load.
